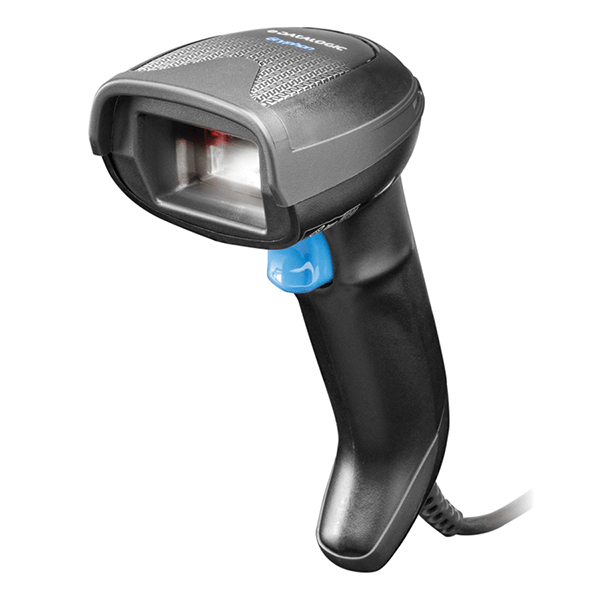

Datalogic Gryphon GD4520 Karekod Barkod Okuyucu

GÖRÜNTÜLEME TEKNOLOJİSİ
The Gryphon™ 4500 serisi, Datalogic’in genel amaçlı uygulamalara yönelik premium el tipi tarayıcı ailesinin bir üyesidir. İnsana dair herşey hesaba katılarak tasarlanan Gryphon I GD4500 serisi, modern şık
tasarımı ve tartışmasız ergonomisi ile rakiplerinden ayrılır ve beyaz aydınlatmalı 2D teknolojisinden güç alan en gelişmiş Megapiksel sensörüyle olağanüstü bir performans sunar.

KULLANIMI VE KONUŞLANDIRMASI KOLAY
Gryphon I 4500 tümyönlü görüntüleyici, tüm yaygın 1D ve 2D kodlarda hızlı okuma performansı sağlar. Daha küçük, daha yoğun yapılı kodlar için Yüksek Yoğunluklu (HD) modeller ve Dijital Filigranları okuyabilen
kırmızı aydınlatma optikli özel bir model de mevcuttur. Datalogic’in Motionix™ hareket algılama teknolojisi, cihaz ele alındığında tarayıcının sezgisel olarak elde kullanım moduna geçmesini sağlar. Cihaz standa geri yerleştirildiğinde de kesintisiz şekilde stand moduna döner. Konum ayarlı stand, şarj esnasında tarayıcıyı sunum veya stand modunda kullanma esnekliği sağlar.

Özellikleri
Modeller
Aksesuarlar
Çözümleme Yeteneği
 1D/Linear Kodlar GS1/Databar Dahil Standart 1D Linear Kodlar
 2D Kodlar

Aztec Kodu; Çin Han Xin Kodu; Data Matrix;
MaxiCode; Micro QR Kodu; QR Kodu
Avustralya Postası; Britanya Postası; Çin Postası;
Japonya Postası; KIX IMB Planet Code; Postnet; Royal
Mail Code (RM45CC)
EAN / JAN Kompozitleri; GS1 DataBar Kompozitleri;
GS1 DataBar Genişletilmiş Yığın; GS1 DataBar
Yığın; GS1 DataBar Yığın Çok Yönlü; MacroPDF;
MicroPDF417; PDF417; UPC A/E Kompozitler
Digimarc Barkodları

 Elektriksel
 Giriş Voltajı 4,5 – 14 VDC +/- %5
 Güç Tüketimi Çalışma Anında: 330 mA @ 3.7 V
 Çevresel
 Ortam Işığı 0 – 100.000 lüks
 Düşme dayanıklılığı 1,8 m / 6,0 ft’ten beton yüzeye tekrar tekrar
düşmelere karşı dayanıklıdır.
 ESD Koruması (Air Discharge) 16 kV
 Nem %95
 IP Standardı IP52
 Çalışma Sıcaklığı 0°C ~ 50°C
 Muhafaza Sıcaklığı -40 °C ~ 70 °C
 Ara Birimler
 Ara Birimler RS-232C, USB, Keyboard Wedge ve Wand (Multi Interface)
 Fiziksel

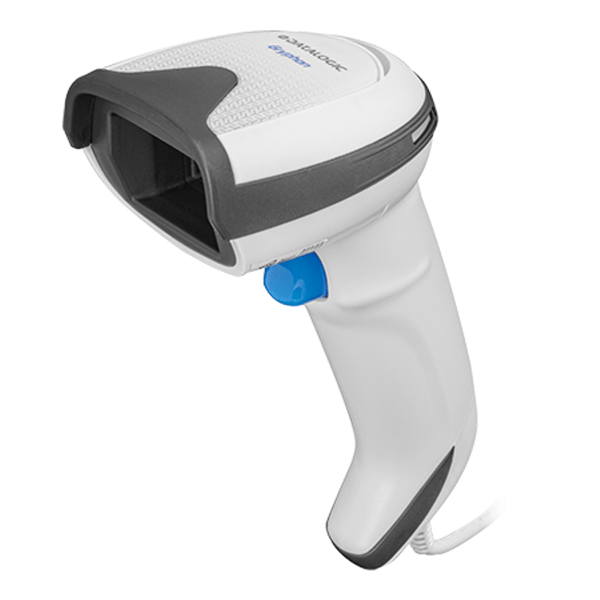

 Renk Siyah veya Beyaz
 Ebatlar 16,6 x 6,8 x 10,9 cm (6,5 x 2,7 x 4,3 inç)
 Ağırlık 235 g / 8,29 oz
 Okuma Performansı
 Işık kaynağı  Hedefleme: Kırmızı Lazer 650 NM
Aydınlatma: Sıcak Beyaz; Digimarc için Hiper Kırmızı
LED
Aydınlatma: 630-670 LED
 Baskı Kontrastı %15
 Resim Yakalama Grafik Formatları: BMP, JPEG, TIFF;
Gri tonlama: 256, 16, 2
Hareket Toleransı 35 IPS
 Göstergeler Uyarı sesi (Ayarlanabilir Ton); sessiz mekanlar için
titreşimli geri bildirim seçeneği; Datalogic 3GL (Üç
Yeşil Işık) İyi Okuma Geri Bildirimi: Kod üzerine
Datalogic ‘Green Spot’, İki İyi Okuma LED’i
Görüntü Sensörü 1 Megapiksel: 1280 x 800 piksel
 Çözünürlük (Max) Yüksek Yoğunluk (HD): 1D Doğrusal: 0,077 mm / 3 mils;
PDF417: 0,077 mm / 3 mils;
Veri Matrisi: 0,102 mm / 4 mils
Standart Aralık (SR): 1D Doğrusal: 0,102 mm / 4 mils;
PDF417: 0,127 mm / 5 mils;
Veri Matrisi: 0,195 mm / 7,5 mils
 Okuma Aralıkları
 GD4520 – GD4520HD
GD4520 Standart  GD4520  (HD)
Kod 39: 5 mils: 7,0 ila 38,0 cm  Kod 39: 3 mils: 5,0 ila 15,0 cm
Kod 39: 10 mils: 2,2 ila 58,0 cm Kod 39: 5 mils: 0,5 ila 25,0 cm
Veri Matrisi: 10 mils: 5,5 – 27,0 cm Veri Matrisi: 5 mils: 5,5 ila 9,0 cm
Veri Matrisi: 15 mils: 2,8 ila 41,0 cm  Veri Matrisi: 10 mils: 2,0 ila 27,0 cm
EAN-13: 13 mils: 1,0 ila 71,0 cm EAN-13: 7,5 mils: 2,0 ila 23,5 cm
PDF417: 10 mils: 2,5 ila 41,0 cm  EAN-13: 13 mils: 1,0 ila 40,0 cm
QR Kodu: 10 mils: 5,5 ila 24,0 cm PDF417: 4 mils: 3,0 ila 12,0 cm
  PDF417: 10 mils: 0,5 ila 31,0 cm
  QR Kodu: 10 mils: 2,0 ila 25,0 cm
 Güvenlik ve Düzenleyiciler
 Kurum onayları (Sertifikalar) Ürün kullanım için gerekli güvenlik ve düzenleyicilere uygundur. Kullanım kılavuzunda tüm güvenlik ve düzenleyiciler listelenmiştir.
 Çevreye Uyum Çin RoHS direktifine uygundur; AB RoHS direktifine
uygundur
 Lazer Sınıflandırması Dikkat Lazer Işını – Işına doğrudan bakmayın;
IEC 60825 Sınıf 2
 Araçlar
 Datalogic Aladdin Okuyucu ile ilgili konfigürasyonların yapılmasını sağlayan program
OPOS JavaPOS JavaPOS ve OPOS Yardımcı Programlarını ücretsiz
indirebilirsiniz
Gryphon GBT4500, 2D MP Imager, Digimarc, Wireless Charging, Black GBT4500-BK-DGM-WLC
Gryphon GBT4500, 2D MP Imager, High Density, Wireless Charging, Black GBT4500-BK-HD-WLC
Gryphon GBT4500, 2D MP Imager, High Density, Wireless Charging, Healthcare GBT4500-HC-HD-WLC
Gryphon GBT4500, 2D MP Imager, Wireless Charging, Black GBT4500-BK-WLC
Gryphon GBT4500, 2D MP Imager, Wireless Charging, Healthcare GBT4500-HC-WLC
Gryphon GBT4500, 2D MP Imager, Wireless Charging, White GBT4500-WH-WLC
Gryphon GBT4500, Kit, USB, Black (Kit includes scanner, WLC4090-BK-BT base and USB cable 90A052258) GBT4500-BK-BTK1
Gryphon GBT4500, Kit, USB, Health Care (Kit includes scanner, WLC4090-HC-BT base and USB cable 90A052278) GBT4500-HC-BTK1
Gryphon GBT4500, Kit, USB, Health Care, BPOC (Kit includes scanner, WLC4090-HC-BT base and USB cable 90A052278)
GBT4500-HCK10-BPOC
Gryphon GM4500, 2D MP Imager, 43 3MHz, Wireless Charging, White GM4500-WH-433-WLC
Gryphon GM4500, 2D MP Imager, 433 MHz, Wireless Charging, Black GM4500-BK-433-WLC
Gryphon GM4500, 2D MP Imager, 433 MHz, Wireless Charging, Healthcare GM4500-HC-433-WLC
Gryphon GM4500, 2D MP Imager, 91 0MHz, Wireless Charging, Healthcare GM4500-HC-910-WLC
Gryphon GM4500, 2D MP Imager, 910 MHz, Wireless Charging, Black GM4500-BK-910-WLC
Gryphon GM4500, 2D MP Imager, 910 MHz, Wireless Charging, White GM4500-WH-910-WLC
Gryphon GM4500, 2D MP Imager, High Density, 433 MHz, Wireless Charging, Black GM4500-BK-HD-433
Gryphon GM4500, 2D MP Imager, High Density, 910 MHz, Wireless Charging, Black GM4500-BK-HD-910
Gryphon GM4500, Kit, USB, 433 MHz, Black (Kit includes scanner, WLC4090-BK-433 base and USB cable 90A052258)
GM4500-BK-433K1
Gryphon GM4500, Kit, USB, 433 MHz, Health Care (Kit includes scanner, WLC4090-HC-433 base and USB cable 90A052278)
GM4500-HC-433K1
Gryphon GM4500, Kit, USB, 910 MHz, Black (Kit includes scanner, WLC4090-BK-910 base and USB cable 90A052258)
GM4500-BK-910K1
Gryphon GM4500, Kit, USB, 910 MHz, Health Care, BPOC (Kit includes scanner, WLC4090-HC-910 base and USB cable 90A052278)
GM4500-HC-910K10-B
Gryphon I GD4520, 2D Mpixel Imager, USB-only, Black GD4520-BK-USB
Gryphon I GD4520, 2D Mpixel Imager, USB-only, Black (Includes Scanner and All in One Permanent Base) GD4520-BK-B-USB
Gryphon I GD4520, Kit, 2D Mpixel Imager, USB-only, Black (Kit includes Scanner and USB Cable 90A052258) GD4520-BKK1
Gryphon I GD4520, Kit, 2D Mpixel Imager, USB-only, Black (Kit includes Scanner, All in One Permanent Base and USB Cable 90A052258)
GD4520-BKK1B
Gryphon I GD4520, Kit, 2D Mpixel Imager, USB-only, Black (Kit includes Scanner, USB Cable 90A052258 and Stand) GD4520-BKK1S
Gryphon I GD4520, Kit, 2D Mpixel Imager, USB-only, HC (Kit includes Scanner and USB Cable 90A052278) GD4520-HCK1
Gryphon I GD4520, Kit, 2D Mpixel Imager, USB-only, High Density, Black (Kit includes Scanner and USB Cable 90A052258)
GD4520-BKK1-HD
Gryphon I GD4520, Kit, 2D Mpixel Imager, USB-only, High Density, HC (Kit includes Scanner and USB Cable 90A052278)
GD4520-HCK1-HD
Gryphon I GD4590, 2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, Black GD4590-BK
Gryphon I GD4590, 2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, Black (Includes Scanner and All in One Permanent Base)
GD4590-BK-B
Gryphon I GD4590, 2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, BPOC Kit, HC (Kit includes Scanner and USB Cable 90A052278)
GD4590-HCK10-BPOC
Gryphon I GD4590, 2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, Digimarc, Black GD4590-BK-DGM
Gryphon I GD4590, 2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, High Density, Black GD4590-BK-HD
Gryphon I GD4590, 2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, High Density, Black (Includes Scanner and All in One Permanent Base)
GD4590-BK-B-HD
Gryphon I GD4590, 2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, High Density, BPOC Kit, HC (Kit includes Scanner and USB Cable 90A052278)
GD4590-HCK10-HD-BP
Gryphon I GD4590, 2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, White GD4590-WH
Wireless Charging Base Station, 433 MHz, USB/RS-232/Wedge Multi-Interface, Black WLC4090-BK-433
Wireless Charging Base Station, 433 MHz, USB/RS-232/Wedge Multi-Interface, Healthcare WLC4090-HC-433
Wireless Charging Base Station, 433 MHz, USB/RS-232/Wedge Multi-Interface, White WLC4090-WH-433
Wireless Charging Base Station, 910 MHz, USB/RS-232/Wedge Multi-Interface, Black WLC4090-BK-910
Wireless Charging Base Station, 910 MHz, USB/RS-232/Wedge Multi-Interface, Healthcare WLC4090-HC-910
Wireless Charging Base Station, 910 MHz, USB/RS-232/Wedge Multi-Interface, White WLC4090-WH-910
Wireless Charging Base Station, BT, USB/RS-232/Wedge Multi-Interface, Black WLC4090-BK-BT
Wireless Charging Base Station, BT, USB/RS-232/Wedge Multi-Interface, Healthcare WLC4090-HC-BT
Wireless Charging Base Station, BT, USB/RS-232/Wedge Multi-Interface, White WLC4090-WH-BT
Cable, Active, RS-485 to RS-232, Coiled, 3.6m 90A052316
Cable, IBM PS/2, KBW, Minidin Connector, Straight, CAB-321 90G001010
Cable, RS-232, 12′ Coiled (For Magellan) 90G001095
Cable, RS-232, 9P, Female, Coiled, CAB-362, External Power, 6 ft. 90A051330
Cable, RS-232, 9P, Female, Coiled, CAB-408 (Power available on pin 9 of the connector or through external power supply), 6 ft. 90A051891
Cable, RS-232, 9P, Female, Straight, CAB-327, Requires External Power, 6 ft. 90G000008
Cable, RS-232, 9P, Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
90A051230
Cable, RS-232, 9P, Male, Beetle POS, Straight, CAB-389, Power Off Terminal, 6.5 ft. 90A051710
Cable, RS-232, DCE, 9P, Extended Power-Power off Terminal, 4 Meters 90A052086
Cable, RS-232,6′ (For Magellan) 90G001092
Cable, USB, Power Conn, Straight, Power off terminal, 2 Meters, CAB-413E2 90A052101
Cable, USB, Type A, Coiled, Power off terminal, 2 Meters, CAB-424E 90A052100
Cable, USB, Type A, Enhanced, Coiled, Power Off Terminal, 5 Meters 90A052066
Cable, USB, Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified) 90A052065
Cable, USB, Type A, TPUW, Coiled, Power off Terminal, 5M, Black 90A052289
Cable, USB, Type A, TPUW, Straight, 2M, Black 90A052258
Cable, USB, Type A, TPUW, Straight, 2M, White 90A052278
Cable, USB, Type A,TPUW, Coiled, 2.4m, Black 90A052285
Cable, USB+PWR,TPUW, Straight, 2M, Black 90A052302
Protective Case/Belt Holster Gryphon 4500 series (Corded & Wireless) PC-G041

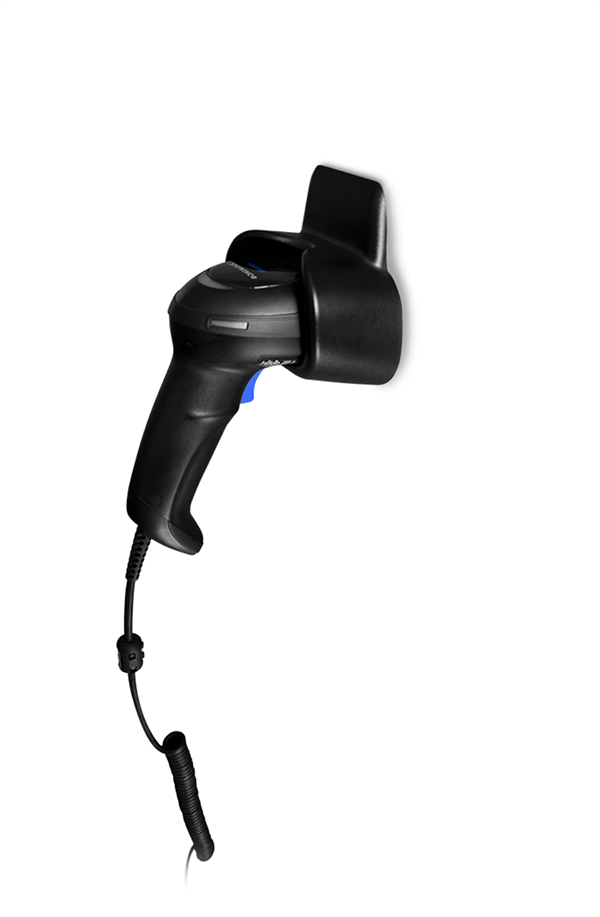

Holder, Desk/Wall Mount, G041, Black HLD-G041-BK
Holder, Desk/Wall Mount, G041, White HLD-G041-WH
Holder, Multi-Purpose, Black 11-0360
Holder, Multi-Purpose, Grey 11-0362
Stand, Auto, G041, Black STD-G041-BK
Stand, Auto, G041, White STD-G041-WH
