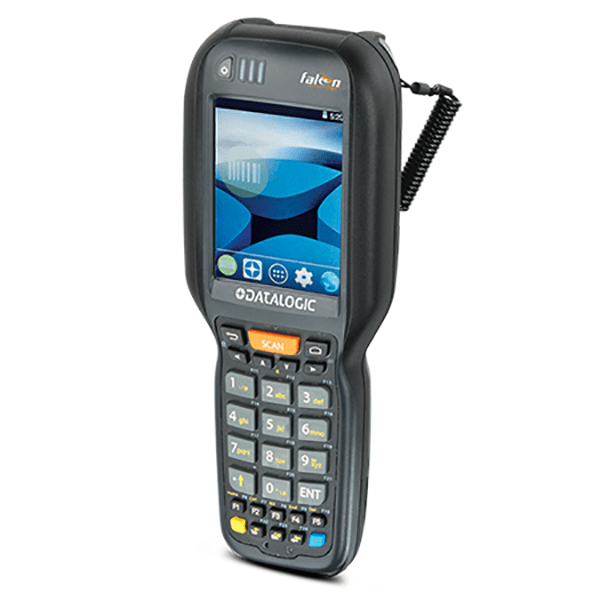

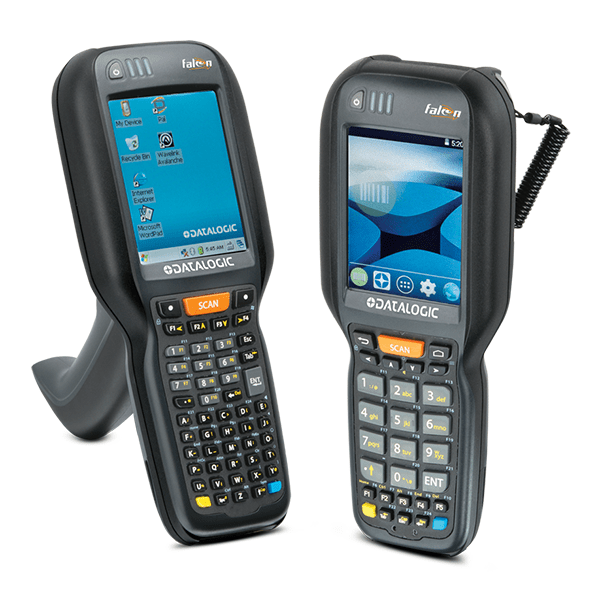

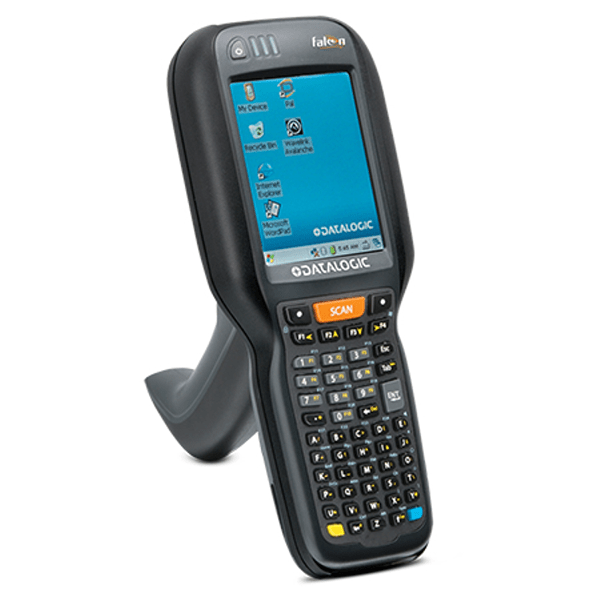

Datalogic Falcon X4 El Terminali

Özellikleri
Modeller
Aksesuarlar
Video
İşlemci Texas Instruments OMAP4 Çift Çekirdek 1 GHZ Mikro İşlemci
RAM 1 GB
ROM Flash Memory: 8 GB
İşletim Sistemi Microsoft Windows Embedded Compact 7
(WEC7) or Android v4.4*
Ekran Reflective TFT daylight readable color display,
240 x 320 pixels, 8.9 cm / 3.5 in diagonal,
65K colors, backlight, touchscreen
Barkode Okuyucu 1D Imager, 2D Imager
Dokunmatik Panel
Bluetooth Bluetooth v4 with BLE (Android models);
Bluetooth v2.1 + EDR (WEC7 models)
USB
Wifi TI Wi-Link 8, IEEE 802.11a/b/g/n;
Frequency Range: Country dependent, typically
2.4 and 5 GHz; Cisco Compatible CCX v4 Security
Düşme Withstands drops from 1.8 m
IP Standartı IP65
Batarya Removable battery pack with rechargeable
Li-ion batteries; 3.7 V 5200 mAh (19.2 Watt hours)
Genişleme Micro Secure Digital slot (SDHC) up to 32 GB
Çalışma Ortamı Sıcaklığı Operating: -20 to 50 ºC /-4 to 122 ºF
Storage: -30 to 70 ºC / -22 to 158 ºF
Klavye Polycarbonate hard cap keyboards with backlight;
29-key numeric, 29-key functional numeric or 52-key
alphanumeric with discrete navigation
Ağırlık Hand held: 602 gr
Pistol grip: 668 gr
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, EU 945500010
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC 945500012
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU 945500011
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC 945500013
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, EU 945500001
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC 945500015
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, EU 945500002
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC 945500003
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, EU 945500014
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, FCC 945500016
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU 945500006
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC 945500009
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, EU 945500004
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC 945500007
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU 945500005
Falcon X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC 945500008
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1 GB RAM/8 GB Flash, 29-Key Functional Numeric F1-F11, White Illumination 2D Imager w Green Spot, Android 4.4, EU 945550018
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F11, Green Laser-like 1D Imager w Green Spot, Android 4.4, EU 945550017
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F11, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC 945550019
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F11, White Illumination 2D Imager w Green Spot, Android 4.4, FCC 945550020
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, Auto Range 2D Imager, Android 4.4, EU 945550036
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, Auto Range 2D Imager, Android 4.4, FCC 945550037
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, Auto Range 2D Imager, Windows Embedded Compact 7, EU 945550030
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, Auto Range 2D Imager, Windows Embedded Compact 7, FCC 945550031
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7 945550010
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC 945550012
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU 945550011
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Functional Numeric F1-F12, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC 945550013
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Auto Range 2D Imager, Android 4.4, EU 945550033
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Auto Range 2D Imager, Android 4.4, FCC 945550035
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Auto Range 2D Imager, Windows Embedded Compact 7, EU 945550027
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, EU 945550015
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC 945550023
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, EU 945550005
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC 945550008
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, EU 945550016
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, FCC 945550024
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU 945550006
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC 945550009
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Large View Imager w Green Spot, Android 4.4, EU 945550043
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric, White Illumination 2D Large View Imager w Green Spot, Windows Embedded Compact 7, EU 945550041
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, White Illumination 2D Large View Imager w Green Spot, Android 4.4, EU 945550042
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, White Illumination 2D Large View Imager w Green Spot, Windows Embedded Compact 7, EU 945550040
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Auto Range 2D Imager, Android 4.4, EU 945550032
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Auto Range 2D Imager, Android 4.4, FCC 945550034
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Auto Range 2D Imager, Windows Embedded Compact 7, EU 945550026
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Auto Range 2D Imager, Windows Embedded Compact 7, FCC 945550028
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, EU 945550014
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC 945550021
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, EU 945550004
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC 945550007
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, EU 945550001
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, FCC 945550022
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU 945550002
Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC 945550003
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key F1-F24 Functional, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, EU 945550038
Falcon X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4,Bluetooth v2.1, 1GB RAM/8GB Flash, 29-Key Numeric,Auto Range 2D Imager, Windows Embedded Compact 7,FCC 945550029
Multi Ethernet Dock, recharges 4 terminals and 4 spare batteries. Power supply included in the box. Power cord ordered separately. 94A150056
Single Slot Desk Mount Dock with Spare Battery Charging Slot. High-Retention USB Type B (client only) and RS232 ports. Includes Power Supply with Regional Plugs and USB Cable. 94A150057
Vehicle Dock, Falcon X3/X4 with RS-232 and USB I/O. Includes power cable and fuse. Requires input power source 9-30 VDC 94A151131
Battery, 5200 mAh High Capacity, FalconX3/X4 94ACC1386
Multi Battery Charger, recharges 4 spare batteries. Power supply included in the box. Power cord ordered separately. 94A151137
Multi Charge Only Dock, recharges 4 terminals and 4 spare batteries. Power supply included in the box. Power cord ordered separately. 94A151135
Cable for dock-PC (RS232) communication 94A051020
Cable from device (Handylink) to female DB9 RS232. Null Modem Cable. Connects to PC. 2m straight cable 94A051972
Cable from device (Handylink) to female USB. Device works as host. Connects to printers or most other peripherals. 15cm straight cable 94A051971
Cable from device (Handylink) to male DB9 RS232. Straight through cable, Power on Pin 9 (5V @ 500mA). Connects to printers, scanners, or most other peripherals. 15cm straight cable 94A051973
Cable from device (Handylink) to USB. Device works as client. Connects to PC, 2m straight cable 94A051970
Clip for Micro USB and Power Supply cables. To be fastened to the RS-232 port of the Single Slot Dock. 95ACC0003
Handylink quick-disconnect audio cable for VR12 headsets 94A050037
