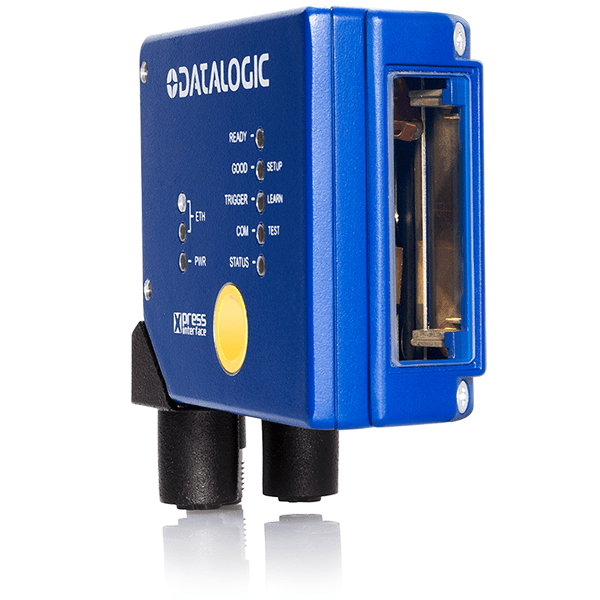

| INDUSTRIAL LASER BAR CODE SCANNERS | DS2400N-X2XX | DS2400N-X3XX | DS2400N-X4XX |
| Reading Distance (Min / Max) |
70 – 600 mm (2.76 – 23.62 in) |
||
| Max Resolution | up to 0.12mm (5 mils) | ||
| Scan Rate | 500 – 1000 scans/s | ||
| Scan Pattern Type | Linear / Raster | ||
| Aperture Angle | 60 degrees | ||
| Multilabel Reading | Up to 10 Codes in the same reading phase | ||
| Reconstruction Code Technology | ACR Advanced Code Reconstruction | ||
| Readable Codes | Code I2of5, Code39, Code93, Code128, EAN/UPC, EAN128, Codabar, Pharmacode, Plessey, ISBT128 | ||
| Case Material | Aluminum | ||
| Dimensions (Typical Value) | 84 x 68 x 34 mm (3.3 x 2.7 x 1.3 in) | 104 x 69 x 38 mm (4.1 x 2.7 x 1.5 in) | 104 x 86 x 38 mm (4.1 x 3.4 x 1.5 in) |
| Weight | 330g ( 11.64 oz) | 281 g (10 oz.) | 308 g (10.9 oz.) |
| Temperature Range | 0° – 45 °C (32 – 113 °F) | ||
| Voltage Supply/Power Consumption | 10-30 VDC; 4 W (average) | ||
| IP Rating | IP65 | ||
| Embedded Communication Interfaces |
Main port RS232/RS422/RS485 Auxiliary port RS232 ID-NET RS485 multidrop |
EtherNet/IP , Ethernet TCP/IP Main port RS232/RS422/RS485 Auxiliary port RS232 ID-NET RS485 multidrop |
PROFINET , Ethernet TCP/IP |
| Digital Inputs | 2 Input (optocoupled, NPN/PNP) | 2 Input (optocoupled, NPN/PNP) | Not Applicable / via PROFINET Fieldbus |
| Digital Outputs | 2 Outputs (optocoupled) | 2 Outputs (non-optocoupled) | Not Applicable / via PROFINET Fieldbus |
| Id-Net™ Interface | ✓ | ||
| Fieldbus | ✓ with CBX , QLM external devices |
Embedded Ethernet-IP / compatible with CBX , QLM external devices |
Embedded Profinet with internal switch (2 Ports) |
| Ethernet | ✓ with CBX , QLM external devices |
Embedded Ethernet TCP-IP / compatible with CBX , QLM external devices |
Embedded PROFINET with internal switch (2 Ports) |
| Xpress Interface™ | ✓ | ||
| Device Programming | Genius™ (Windows™ based) SW | ||
|
DS2400N-0200 SHORT RANGE, LINEAR, NSC |
930181379 |
|
DS2400N-0205 SHORT RANGE, LINEAR, NSC, SUBZERO |
930181415 |
|
DS2400N-0210 SHORT RANGE, RASTER, NSC |
930181380 |
|
DS2400N-0215 SHORT RANGE, RASTER, NSC, SUBZERO |
930181416 |
|
DS2400N-0300 SHORT RANGE, LINEAR, ETH, D |
930181481 |
|
DS2400N-0310 SHORT RANGE, RASTER,ETH, D |
930181482 |
|
DS2400N-0400 SHORT RANGE, LIN, PNET, D |
930181483 |
|
DS2400N-0410 SHORT RANGE,RASTER,PNET,D |
930181484 |
|
DS2400N-1200 MEDIUM RANGE, LINEAR, NSC |
930181381 |
|
DS2400N-1205 MEDIUM RANGE, LINEAR, NSC, SUBZERO |
930181417 |
|
DS2400N-1210 MEDIUM RANGE, RASTER, NSC |
930181382 |
|
DS2400N-1215 MEDIUM RANGE, RASTER, NSC, SUBZERO |
930181418 |
|
DS2400N-1300 MEDIUM RANGE,LINEAR,ETH,D |
930181485 |
|
DS2400N-1310 MEDIUM RANGE, RASTER,ETH, D |
930181486 |
|
DS2400N-1400 MEDIUM RANGE, LINEAR,PNET,D |
930181487 |
|
DS2400N-1410 MEDIUM RANGE, RASTER,PNET,D |
930181488 |
|
DS2400N-2200 LONG RANGE, LINEAR, NSC |
930181383 |
|
DS2400N-2205 LONG RANGE, LINEAR, NSC, SUBZERO |
930181419 |
|
DS2400N-2210 LONG RANGE, RASTER, NSC |
930181384 |
|
DS2400N-2215 LONG RANGE, RASTER, NSC, SUBZERO |
930181420 |
|
DS2400N-2300 LONG RANGE, LINEAR, ETH, D |
930181489 |
|
DS2400N-2310 LONG RANGE, RASTER,ETH, D |
930181490 |
|
DS2400N-2400 LONG RANGE, LINEAR, PNET, D |
930181491 |
|
DS2400N-2410 LONG RANGE, RASTER, PNET, D |
930181492 |
